DIN Rail Mount 10 Position Power Distribution Fuse Module, for 5 to 32V
US$16.40
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by qsr-group.de
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$16.40
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by qsr-group.de
Free 30-day returns Details
Product details
| Management number | 221265916 | Release Date | 2026/05/03 | List Price | US$16.40 | Model Number | 221265916 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Work voltage: AC or DC 5~32V, total current rating 40Amp. PCB Dimensions: 150mm x 72.5mm x 29mm (W x L x H). Module Dimensions: 153mm x 87mm x 53mm (W x L x H).
- Input terminals: pitch - 7.62mm/0.3", current 30A for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw.
- P1 output terminals: pitch - 5.08mm/0.2", maximum current 10A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw.
- P2-1 to P2-10 output terminals: pitch - 7.5mm/0.295", maximum current 10A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw. Fuse holders for Medium Blade ATO/ATC Fuse, factory-installed fuses 5Amp. with fuse fail indication function.

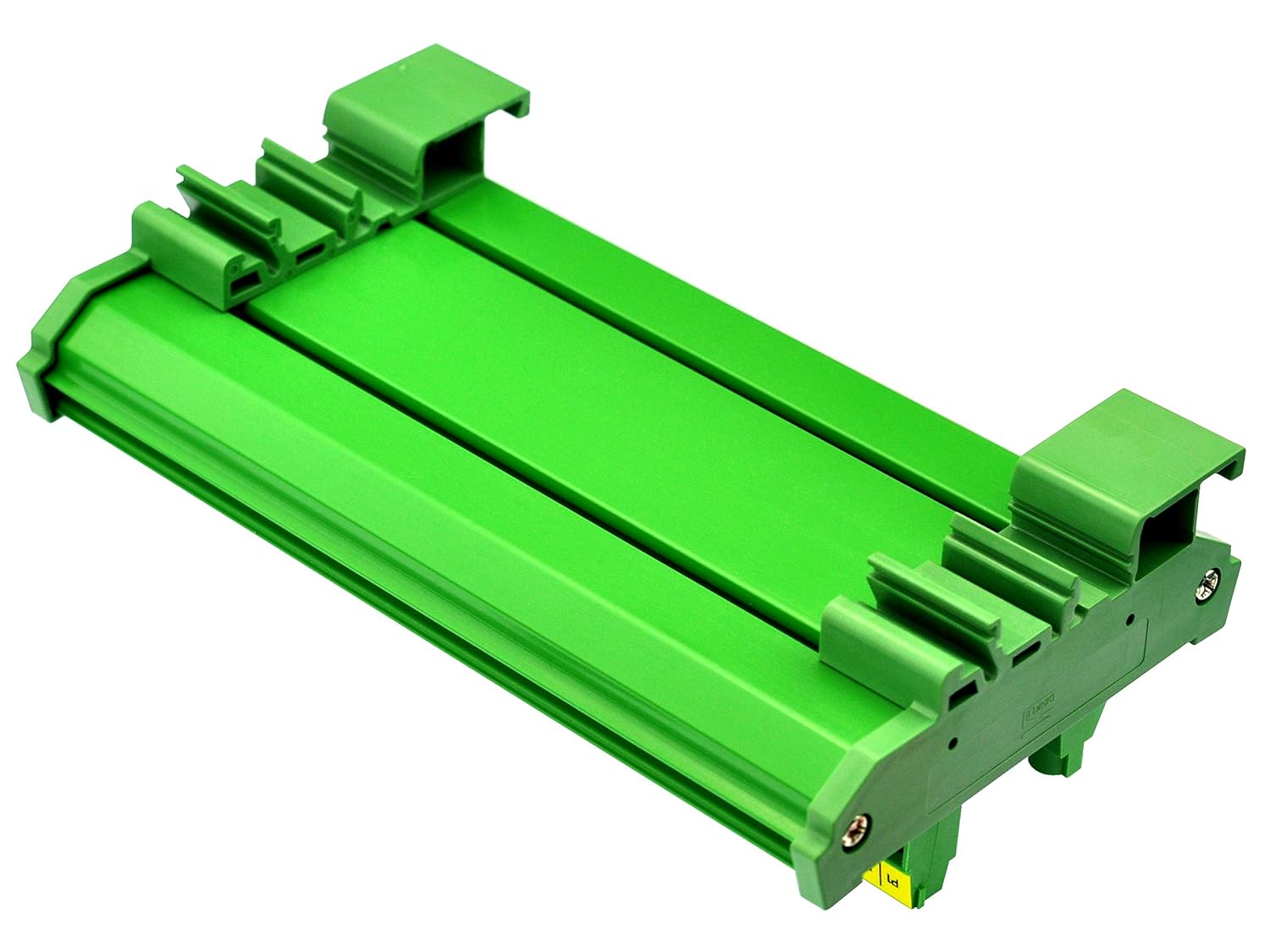

- FR-4 fiber glass PCB, dual copper layers. Fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use.
| Color | Green |
|---|---|
| Gauge | 10.0 |
| Model | HD037T |
| Pitch | 5.08 Millimeters |
| Voltage | 32 Volts |
| Brand Name | HCDC |
| Unit Count | 10.0 Count |
| Part Number | HD037T |
| Manufacturer | Xiken Electronic Technology Co., Ltd. |
| Material Type | Copper |
| Mounting Type | DIN Rail Mount |
| Connector Type | Screw |
| Current Rating | 40 Amps |
| Number Of Poles | 10 |
| Centerline Length | 153 Millimeters |
| Number Of Contacts | 10 |
| Number of Positions | 10 |
| Item Dimensions W x H | 6.02"W x 1.14"H |
